Al Vishwas Nickel Alloys, headquartered in Dubai, UAE, is a leading manufacturer and supplier that focuses on premium Titanium Gr 5 Fasteners. These fasteners are renowned for their exceptional strength-to-weight ratio and superb corrosion resistance, which makes them ideal for even the most demanding industrial uses. By selecting Titanium Gr 5 Fasteners from Al Vishwas, you can count on precision, dependability, and long-lasting performance, ensuring they function effectively in critical settings. They are especially well-suited for industries such as aerospace, chemical processing, marine, and automotive, where they retain their structural integrity even under heavy stress and extreme temperatures. Al Vishwas Nickel Alloys is dedicated to making sure that each Titanium Gr 5 Fastener complies with international quality standards.
These fasteners are crafted from a titanium alloy containing 6% aluminum and 4% vanadium, achieving an ideal balance between high strength and lightweight characteristics. They offer outstanding corrosion resistance against seawater, oxidizing agents, and diverse chemical environments. Featuring exceptional tensile strength, toughness, and fatigue resistance, Titanium Gr 5 Fasteners are engineered to perform under extreme conditions. They can additionally be heat-treated to improve their mechanical properties while withstanding stress corrosion cracking. Their durability and dependability make them well-suited for applications that demand long-lasting fastening solutions.
|
Titanium Grade 5 Fasteners Specifications |
ASTM B348/ ASME SB348 |
|
Titanium Grade 5 Fasteners Standard |
DIN, ASTM, BS and all International Standards |
|
Titanium Grade 5 Fasteners Length |
3 mm to 200 mm |
|

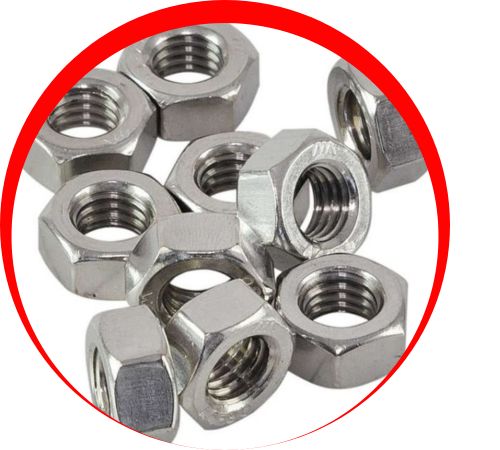

Titanium Grade 5 Nuts Size |
M3 – M56 | 3/6″ to 2″ | Custom Sizes |
|
Titanium Grade 5 Bolt / Screw Size |
M3 – M56 | 3/6″ to 2″ | Custom Sizes |
|
Titanium Grade 5 Machine Screws Size |
M1.6 – M12 |
|

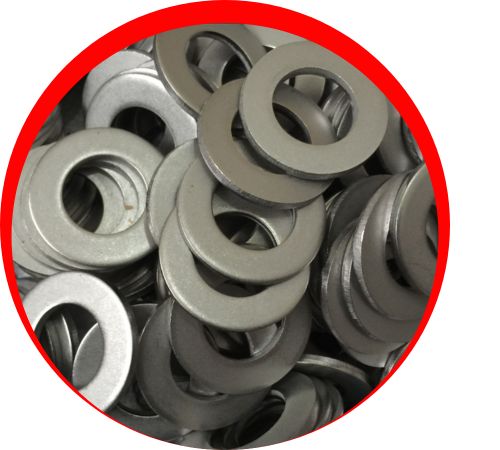

Titanium Grade 5 Washers Size |
M3 – M56 | 3/6″ to 2″ | Custom Sizes |
|
Titanium Fasteners Type |

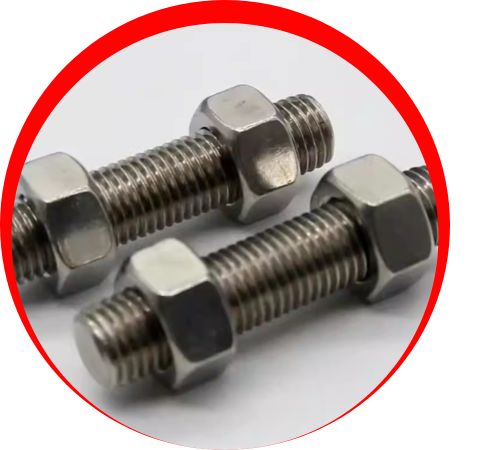

Nut, Hex Coupling Nut, Hex Nut, Square Nut, Hex Domed Cap Nuts, Hex Head Bolts, Stud Bolts, Socket Hexagon Head Screw, Pan Head Screw, Socket Head Cap Screw, Wing Screw, T-Head Bolts, Foundation Bolts,Screw, Studs, Socket Screw, Hex Set Screw, Cap Screw, Machine Screw, Wing Screw, Spring Washers, Washers, Studs, Marine Anchors, Anchors, Hexagon Nut,U- Bolts, Anchor Bolt, Mushroom Head Square Neck Bolts, J Bolts, Eye Bolt,Structural Bolts, Bolts, Nuts, Sockets, Screws, Allen Cap screw |
|
Titanium Gr 5 |
C |
Ti |
N |
Fe |
H |
O |
V |
Al |
|
0.10 max |
90 min |
0.05 max |
0.40 max |
0.015 max |
0.20 max |
3.5-4.5 |
5.5-6.75 max |
|
Density |
Melting Point |
Yield Strength (0.2%Offset) |
Tensile Strength |
Elongation |
|
4.43 g/cm3 |
1632 °C (2970 °F) |
Psi – 128000 , MPa – 880 |
Psi – 138000 , MPa – 950 |
14 % |
At Al Vishwas Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Titanium Gr 5 Fasteners in Dubai, UAE, delivering advanced solutions for every one of your piping requirements. Our modern production facilities are strategically situated in the UAE, enabling us to keep an extensive stock of more than 16,000 tons of top-quality materials on hand and ready to ship. We are committed to supplying outstanding products and services, guaranteeing dependability and excellence for our worldwide customers.
Reach out to us for a fast quote tailored to your requirement.
You’ll come across Titanium Gr 5 Fasteners in numerous settings, such as aerospace assemblies, marine structures, chemical plants, power generation equipment, and high-performance automotive applications. They work perfectly for fastening critical components exposed to harsh environments, extreme temperatures, and corrosive agents. These fasteners deliver safety, precision, and structural integrity in demanding projects. On top of that, they serve in medical devices, offshore equipment, and industrial machinery where durability and fatigue resistance matter greatly. Their lightweight yet robust design helps cut down overall structural weight, making them a wise choice for many applications.
