Al Vishwas Nickel Alloys is a well-regarded manufacturer and supplier of premium Incoloy Stud Bolts, proudly headquartered in Dubai, UAE. Known for delivering robust and high-performing fastening solutions, the company employs advanced manufacturing techniques and stringent quality control to ensure exceptional durability and precision. Their Incoloy Stud Bolts are engineered to withstand extreme temperatures, corrosive conditions, and high-pressure scenarios, making them ideal for demanding industrial applications. Serving sectors such as petrochemical, marine, oil and gas, power generation, and heavy engineering, Al Vishwas Nickel Alloys has built a strong reputation for dependability, technical expertise, and a customer-focused approach, positioning itself as a preferred supplier in the region.
Incoloy Stud Bolts consist primarily of nickel, chromium, and iron, along with different quantities of molybdenum, titanium, copper, and niobium based on the particular grade. This distinctive alloy makeup delivers exceptional resistance to oxidation, carburization, and aggressive chemical conditions. From a mechanical standpoint, Incoloy Stud Bolts offer high tensile strength, outstanding creep resistance, and notable stability at high temperatures. Their sturdy microstructure guarantees dependable fastening even during heavy loads, thermal cycling, and changing pressures. Together, these chemical and mechanical characteristics make Incoloy Stud Bolts ideal for durable performance in tough industrial environments.
| Specification | ASTM F468, B425 / ASME SF468, SB425 |
|---|---|
| Size | M02 to M33, Custom Sizes |
| Length | 3 mm to 200 mm |
| Stud Bolt | UNF, BSW, BSF, METRIC, UNC, or as required |
| Standard | DIN 525, DIN 835, DIN 938, DIN 939, DIN 940, DIN 949-1, DIN 949-2, DIN 975, DIN 976, DIN 2509, BS 2693, BS 3692, BS 4439, IS 1862, IS 13178, ANSI/ASME B18.31.2, ANSI/ASME B16.5 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |

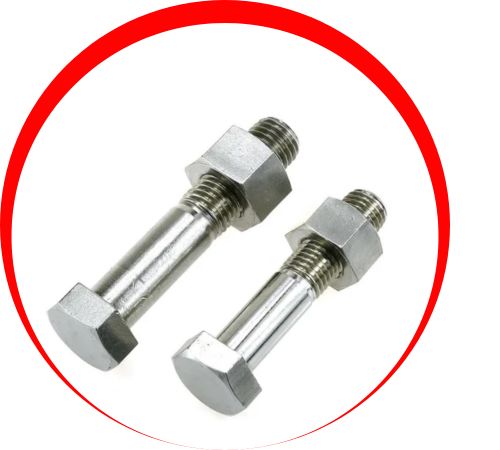

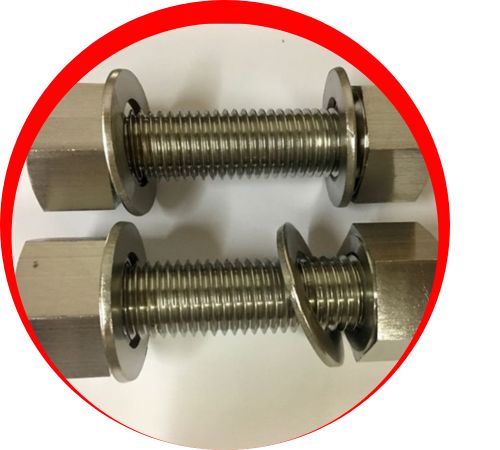

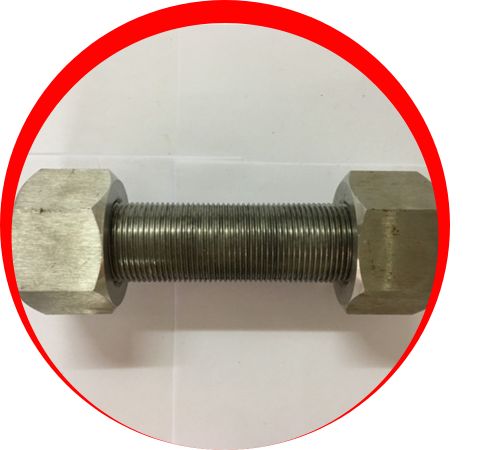

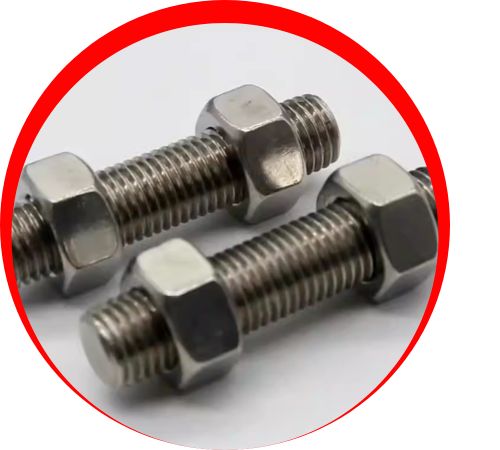

| Types | Stud Bolts, Fully Threaded Stud Bolts, Tap End Stud Bolts, Double End Stud Bolts, Stud Bolts with Reduced Shank, Reduced Shank, Flange Stud Bolts, Flange Bolting, Weld Studs |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process | M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive of Stud Bolts | Six-Lobe, Phillips, Phillips/Slot, Slotted etc |
| Packing of Stud Bolts | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Ptfe Coated Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
At Al Vishwas Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Incoloy Stud Bolts in Dubai, UAE, delivering innovative solutions for every one of your piping requirements. Our advanced manufacturing facilities are strategically situated in the UAE, enabling us to keep an extensive stock of more than 16,000 tons of top-quality materials on hand and ready for immediate supply. We are committed to providing outstanding products and services, guaranteeing dependability and excellence for our worldwide customers.
Reach out to us for a fast quote tailored to your requirement.
Incoloy Stud Bolts are widely applied in industries requiring dependable fastening under severe conditions. They serve a vital function in chemical processing facilities, where they easily withstand acids, alkalis, and high-temperature operations. Oil and gas sites depend on them for flanged joints, refinery equipment, offshore platforms, and high-pressure piping systems. Within power generation, these bolts are key to maintaining the integrity of numerous components, and in heavy engineering, they deliver the strength required for large-scale projects. Thanks to their adaptability and long-lasting performance, Incoloy Stud Bolts remain a favored option across many industries.
