Al Vishwas Nickel Alloys, based in Dubai, UAE, distinguishes itself as a leading manufacturer and supplier of premium-grade Inconel 600 Bars. Recognized for their precise engineering and reliable performance, Al Vishwas guarantees that their products conform to international standards. These Inconel 600 Bars are built to excel in extreme temperatures and corrosive environments. Offering outstanding strength, thermal stability, and oxidation resistance, they’re ideal for a wide range of critical industrial uses. Sectors such as chemical processing, aerospace, power generation, marine engineering, and heat-treating operations rely on Al Vishwas Nickel Alloys for durable, high-performance bars that ensure lasting efficiency, safety, and reliability.
Inconel 600 Bars are primarily composed of nickel (a minimum of 72%), chromium (14–17%), and iron, together with minor quantities of copper, silicon, and manganese. This distinctive composition provides them with excellent resistance to oxidation, carburization, and stress-corrosion cracking triggered by chlorides. In terms of mechanical properties, these bars feature high tensile and yield strength, outstanding creep resistance, and exceptional toughness over a wide temperature range. Their steadiness during thermal cycling and capacity to withstand aggressive chemical conditions guarantee dependable performance. Inconel 600 Bars deliver a strong combination of strength, durability, and corrosion resistance, making them ideal for demanding industrial applications.
| Specification | ASTM B166 UNS N06600, AMS 5665 |
|---|---|
| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |

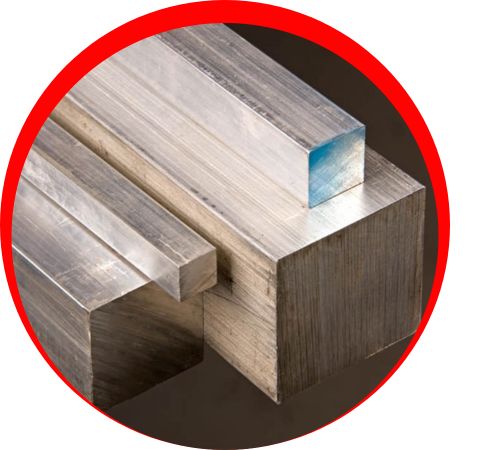

| Square bar size | 4 to 100mm |
| Round bar size | Diameter: 3-~800mm |

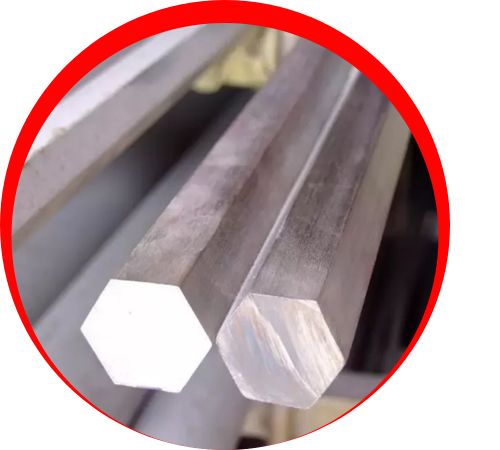

| Hex Bar size | 2-100mm A/F |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Section | 3.0 to 12.0mm thickness |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Billet Size | 1/2″ to 495mm Diameter |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Condition | Hardened & tempered, annealed |
| Technique | 600 Inconel Cold Drawn, Hot Rolled, Forged Round Bar, Rod, Cold Rolled |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Cold Drawn, Bright, Sand Blasting Finished, Hot Rolled Pickled, Hairline, Polished |
| Processing | Bar cutting to 650mm |

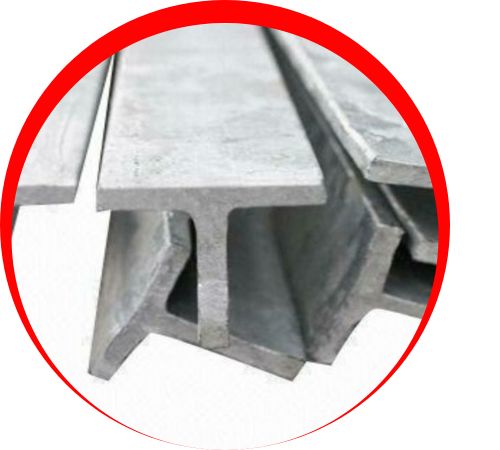

| Form | Precision Ground Bar, Flat Bar, Square, Round, Half Round Bar, Rod, Rectangle, Hex (A/F), T-Bar, Channel Bar, Blocks, Round Rod, Threaded, Profiles, Billet, Ingot, I/H Bar, Forging, Rings, Hollow, Triangle etc. |
| Grade | Ni | Cr | Fe | C | Mn | S | Si | Cu |
|---|---|---|---|---|---|---|---|---|
| Inconel 600 | 72.0 min | 14.0 – 17.0 | 6.0 – 10.0 | 0.15 max | 1.0 max | 0.015 max | 0.5 max | 0.5 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
At Al Vishwas Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 600 Bars in Dubai, UAE, delivering advanced solutions for every one of your piping requirements. Our modern manufacturing facilities are strategically situated in the UAE, enabling us to keep an extensive stock of more than 16,000 tons of top-quality materials readily on hand. We are committed to supplying outstanding products and services, guaranteeing dependability and excellence for our worldwide customers.
Get in touch with us to receive a fast quote for your requirement.
Inconel 600 Bars are widely applied in industries that require materials able to endure intense heat, corrosion, and mechanical stress. They’re ideal for chemical processing equipment, heat exchangers, furnace components, and pipelines handling high-temperature gases and harsh chemicals. Within the aerospace field, these bars serve in engine components and exhaust systems owing to their thermal stability. Beyond that, they’re used in nuclear engineering, marine applications, food processing equipment, and power generation.
