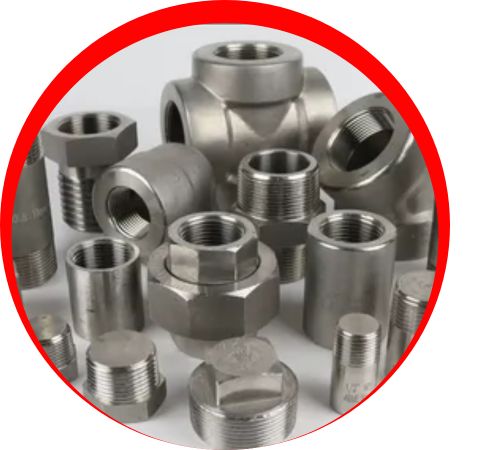

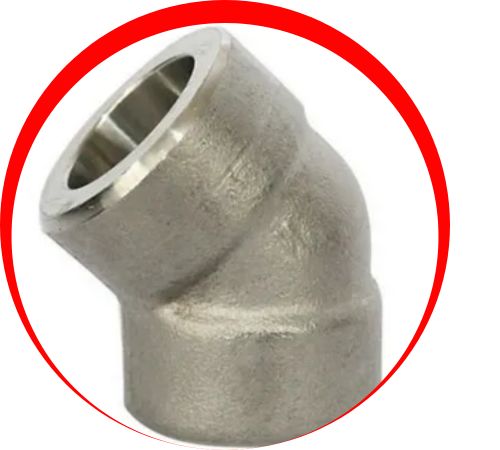

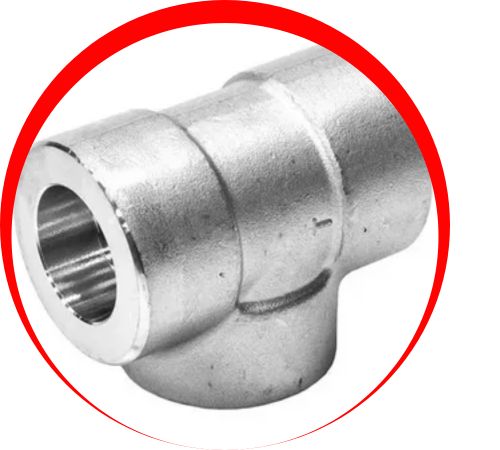

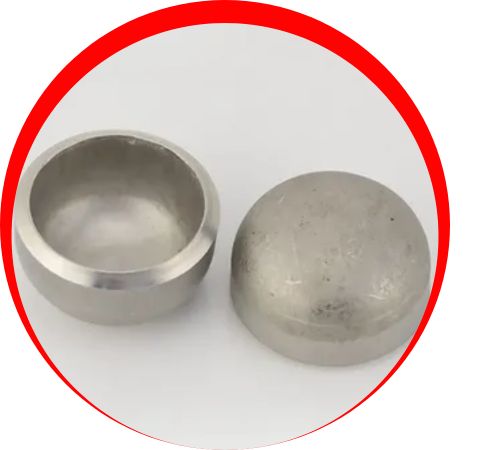

Al Vishwas Nickel Alloys distinguishes itself as a leading manufacturer and supplier of Inconel 600 Forged Fittings in Dubai, UAE. They take pride in offering high-quality products that are made to endure and function remarkably well. Recognized for their manufacturing precision and dedication to international standards, the company provides a wide range of forged elbows, tees, couplings, unions, and custom fittings crafted from premium Inconel 600. These fittings are designed to endure extreme temperatures, corrosive conditions, and considerable mechanical stress, guaranteeing they stay dependable over time. Through prompt delivery, expert technical assistance, and tailored solutions, Al Vishwas Nickel Alloys serves as a trusted partner for industries such as petrochemical, aerospace, marine, and power generation.
Inconel 600 Forged Fittings consist primarily of nickel (a minimum of 72%), combined with chromium (14–17%) and iron, plus small quantities of carbon, manganese, silicon, copper, and sulfur. This distinctive composition delivers outstanding resistance to oxidation, carburization, and chloride stress corrosion cracking. From a mechanical standpoint, the alloy offers high tensile strength, superb creep resistance, and stability over a wide temperature range. Inconel 600 retains its toughness even under thermal cycling and contact with aggressive chemicals, which makes these forged fittings ideal for demanding conditions where both corrosion resistance and high-temperature strength are essential.
| Standards | ASTM, ASME |
| Designation | B564, SB564 |
| Dimension Standard | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Grade | Inconel 600 Forged Fittings. |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Types of Forged Fittings | Elbow, Tee, Union, Cross, Swage Nipples, Coupling, CAP, Plug, Bush. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
At Al Vishwas Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 600 Forged Fittings in Dubai, UAE, delivering advanced solutions for every one of your piping requirements. Our modern manufacturing facilities are strategically situated in the UAE, enabling us to keep a large inventory of more than 16,000 tons of top-quality materials on hand in stock. We are committed to supplying outstanding products and services, guaranteeing dependability and excellence for our worldwide customers.
Reach out to us for a fast quote tailored to your requirement.
Inconel 600 Forged Fittings are used across a range of industries that handle intense heat, pressure, and corrosive environments. They serve as essential parts in chemical processing systems, furnace equipment, heat-treating fixtures, and nuclear reactor piping. Their remarkable resistance to chlorides and oxidizing conditions makes them well-suited for marine engineering, offshore installations, and seawater-handling systems. Within the aerospace sector, these fittings deliver dependable performance in high-temperature engine components, safeguarding safety and efficiency in demanding applications.
