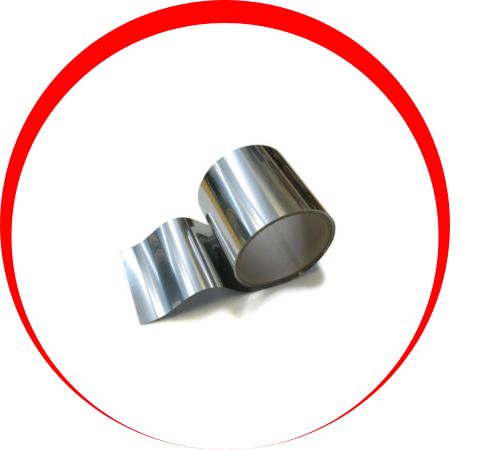

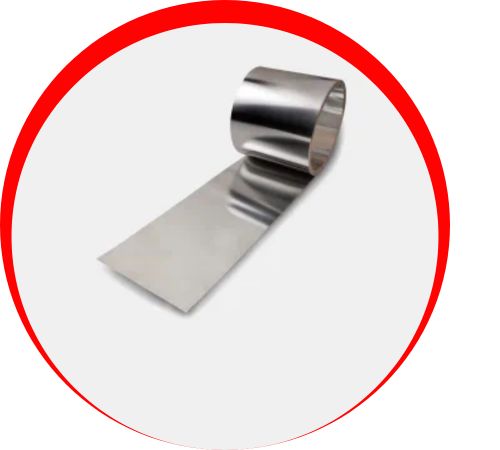

Al Vishwas Nickel Alloys, a highly respected manufacturer and supplier based in Dubai, UAE, provides premium **Tantalum Shim** designed to satisfy the demanding requirements of modern industrial applications. Known for its outstanding resistance to corrosion, stability, and durability under high temperatures, Tantalum Shim from Al Vishwas Nickel Alloys ensures accuracy and dependability in every sheet. The company employs advanced manufacturing techniques and rigorous quality control practices to deliver reliable performance in settings that involve chemical exposure, heat, and demanding fabrication needs. With a firm commitment to customer satisfaction, technical expertise, and timely delivery, Al Vishwas Nickel Alloys supplies Tantalum Shim that delivers peak performance, extended service life, and material integrity.
Tantalum Shim is manufactured from high-purity tantalum, generally containing at least 99.9% Ta, which ensures outstanding chemical inertness and corrosion resistance. Its makeup includes very low amounts of oxygen, nitrogen, hydrogen, and carbon, improving its ductility and formability. Tantalum Shim delivers impressive tensile strength, an elevated melting point, and notable thermal stability, rendering it dependable under extreme temperature conditions. It further demonstrates superb resistance to nearly all acids, including powerful mineral acids, which renders it invaluable in harsh chemical environments. Its excellent workability enables the precise fabrication of delicate industrial components.
| Standards : | ASTM / ASME |
| Dimensions : | ASTM, ASME, and API |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Shims Thickness : | Range from .01″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Element | R05200 (%,Max) | R05400 (%,Max) |
| C | 0.01 | 0.01 |
| O | 0.015 | 0.03 |
| N | 0.01 | 0.01 |
| H | 0.0015 | 0.0015 |
| Fe | 0.01 | 0.01 |
| Mo | 0.02 | 0.02 |
| Nb | 0.1 | 0.1 |
| Ni | 0.01 | 0.01 |
| Si | 0.005 | 0.005 |
| Ti | 0.01 | 0.01 |
| W | 0.05 | 0.05 |
| Grade | Tensile strength δbpsi (MPa)， ≥ | Yield strength δ0.2， psi (MPa)，≥ | Elongation in 1″/2″ gage length， ％， ≥ |
| RO5200/RO5400 | 30000 (207) | 20000 (138) | 25 |
| RO5252 | 40000 (276) | 28000 (193) | 20 |
| RO5255 | 70000 (481) | 60000 (414) | 15 |
| RO5240 | 40000 (276) | 28000 (193) | 20 |
Tantalum Shim is widely applied across industries that require strong corrosion resistance, thermal stability, and material purity. It is frequently employed in chemical processing equipment, such as systems used for acid production and storage, owing to its capacity to endure powerful acids like nitric and others.
Reach out to us for a fast quote tailored to your requirement.
Tantalum shimsare frequently employed in applications demanding high temperature resistance and corrosion resistance. It sees broad use across aerospace, electronics, and medicine. Tantalum shims serve in the production of items such as heat exchangers, furnace components and semiconductor devices, where toughness against extreme conditions is needed, tantalum shims are also utilized in specialized consumable tools for aggressive chemical applications thanks to outstanding resistance to acids such as aqua regia and sulfuric acid Makes it ideal for high performance applications.
