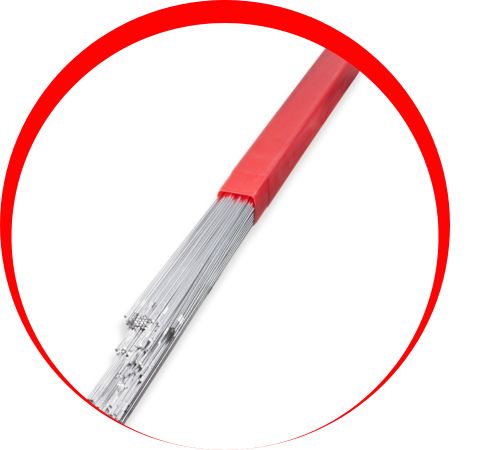

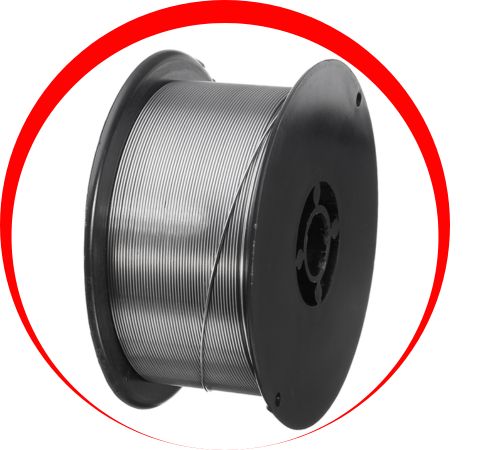

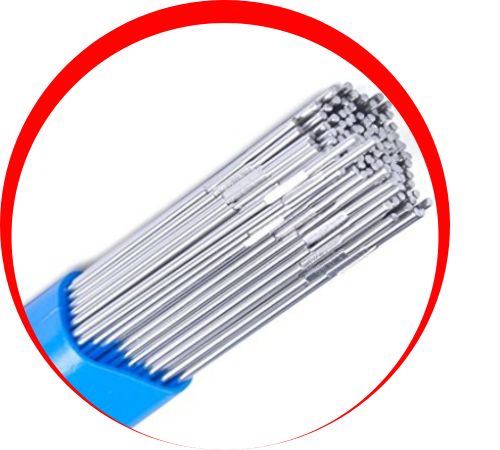

Home > Nickel Alloys > AWS Class ERNi-1 MIG and TIG Filler Welding Wire and Rod for Welding
Al Vishwas Nickel Alloys, a well-known manufacturer and supplier located in Dubai, UAE, provides top-grade AWS Class ERNi-1 MIG and TIG Filler Welding Wire and Rod. Engineered for nickel-based alloy welding, this product delivers outstanding strength and resistance to corrosion. Well-suited for applications that demand high mechanical properties and dependability, ERNi-1 welding wire and rod are ideal for critical industrial purposes, offering superior welds with excellent toughness and durability across a range of challenging environments.
ERNi-1 AWS class MIG and TIG filler welding lines and rods consist mainly of nickel with very little alloying content. These characteristics deliver outstanding corrosion resistance and weldability, which makes them well suited for joining and cladding nickel-based alloys. Their mechanical properties feature high tensile strength along with good ductility, guaranteeing the longevity of welded joints. Benefits include robust resistance to oxidation and high temperature corrosion, making this filler appropriate for severe environments and challenging applications to keep welds high quality and dependable in critical uses.
| Classification | AWS A5.14, ERNi-1 |
| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ERNi-1 MIG & TIG Filler Metal Application & uses |
|
| C | Mn | Si | S | P | Ni | Fe | Cu | Al | Ti |
|---|---|---|---|---|---|---|---|---|---|
| ≤0.15 | ≤1 | ≤0.75 | ≤0.015 | ≤0.02 | ≥93 | ≤1 | ≤0.25 | ≤1.5 | 2-3.5 |
| Tensile Strength MPa(ksi) | Yield Strength MPa(ksi) | Elongation % | |
|---|---|---|---|
| AWS requirement | 380(55) | Not specified | Not specified |
| Typical results as welded | 460(67) | 260(38) | 28 |
At Al Vishwas Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of AWS Class ERNi-1 MIG and TIG Filler Welding Wire and Rod in Dubai, UAE, delivering advanced solutions for every one of your piping requirements. Our cutting-edge manufacturing facilities are strategically positioned in the UAE, enabling us to keep an extensive stock of more than 16,000 tons of top-quality materials on hand and ready in inventory. We are committed to providing outstanding products and services, guaranteeing dependability and excellence for our worldwide customers.
Reach out to us for a fast quote tailored to your requirement.
AWS class ERNi-1 MIG and TIG filler welding lines and rods are mainly used for joining nickel-based alloys and for overlay applications. They work well for packaging in sectors like aerospace, chemical processing, and marine engineering, where protection against corrosion and elevated temperatures is called for and this filler is required and inspect nickel alloys in equipment operating in harsh environments. Its excellent weldability and corrosion resistance make it well-suited for applications demanding high welding performance.
