Al Vishwas Nickel Alloys Manufacturer and Supplier in Dubai, UAE, is pleased to provide AWS Class ERNiCr-3 MIG and TIG Filler Welding Wire and Rod, engineered for high-performance welding uses. Well-known for its outstanding corrosion resistance and durability, this filler material works perfectly for welding nickel-chromium alloys and stainless steels. It delivers exceptional weldability, superb mechanical properties, and remarkable resistance to oxidation, which makes it a reliable option for challenging industrial settings and critical applications.
ERNiCr-3 MIG and TIG filler welding wires and rods of AWS class are composed mainly of nickel (roughly 67.0%) and chromium (roughly 18-22%), along with minor quantities of manganese, silicon, and carbon This alloy this offers resistance to oxidation and corrosion, particularly in high temperature settings It delivers outstanding weldability and strength, which makes it well suited for uses that demand high performance and corrosion resistance, such as in aerospace and medicine Its mechanical properties feature high tensile strength and good elongation, a boosting its durability and reliability under harsh conditions.
| Classification | AWS A5.14, ERNiCr-3 |

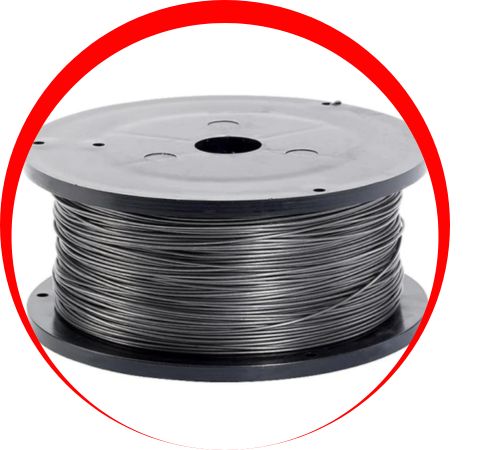

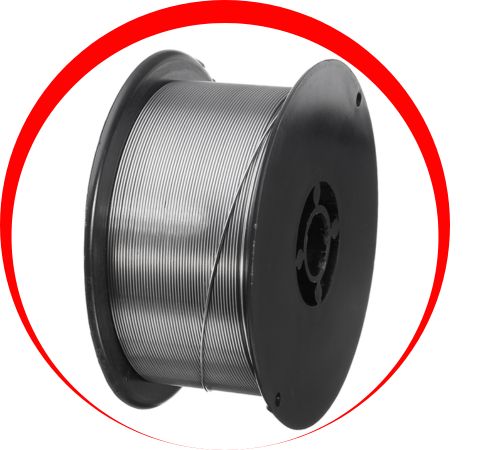

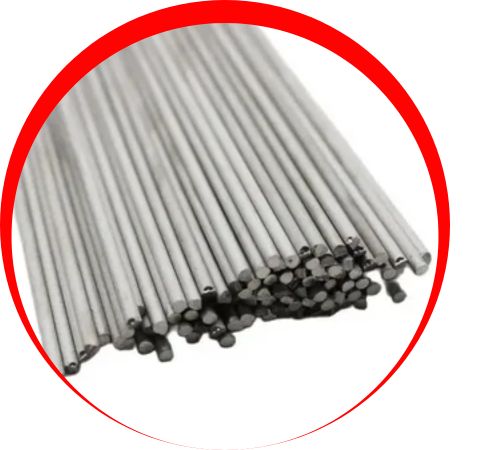

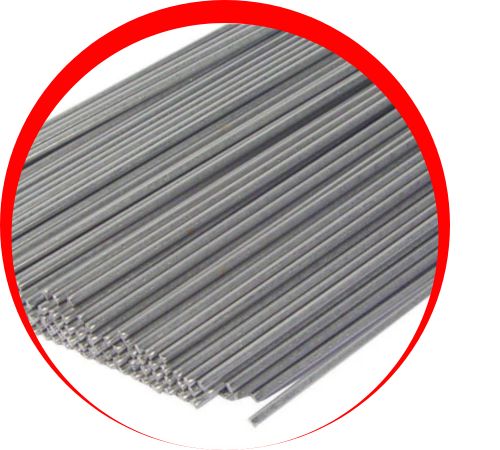

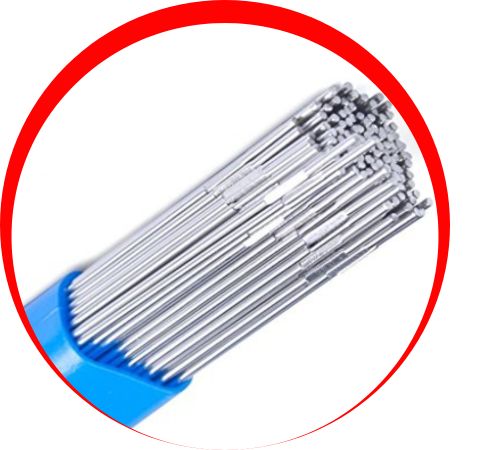

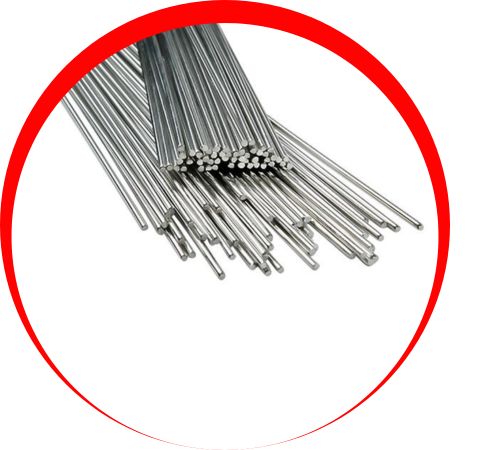

| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ERNiCr-3 MIG & TIG Filler Metal Application & uses |
|
| C | Mn | Fe | P | S | Si | Cu | Ni | Ti | Cr | Tb+Ta | Other |
| 0.10 | 2.5-3.5 | 3.0 | 0.03 | 0.015 | 0.50 | 0.50 | 67.0 min | 0.75 | 18.0-22.0 | 2.0-3.0 | 0.50 |
| Tensile Strength | 85,500 psi |
|---|---|
| Yield Strength | 52,500 psi |
| Elongation | 38% |
At Al Vishwas Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of AWS Class ERNiCr-3 MIG and TIG Filler Welding Wire and Rod in Dubai, UAE, delivering advanced solutions for every one of your piping requirements. Our cutting-edge manufacturing facilities are strategically positioned in the UAE, enabling us to keep an extensive stock of more than 16,000 tons of top-grade materials available on hand. We are committed to providing outstanding products and services, guaranteeing dependability and excellence for our worldwide customers.
Reach out to us for a fast quote on your requirement.
AWS Class ERNiCr-3 MIG and TIG filler welding wires and rods are commonly employed in applications that demand high strength and solid corrosion resistance Typical uses include welding of components in the aerospace industry, medical devices , and energy consumption. Appropriate for the collection and preparation of stainless steel, nickel-chromium alloys, and other high-performance alloys. The product is well suited for service in environments exposed to thermal cycling, high temperature and corrosive conditions, which makes it desirable for critical and complex welding applications.
