Incoloy 825 Forgings consist chiefly of nickel (38–46%), iron (29–34%), and chromium (19–23%), along with minor additions of molybdenum, copper, and titanium included to enhance corrosion resistance and strength. This alloy delivers remarkable mechanical characteristics, including high tensile strength, solid ductility, and outstanding resistance to oxidation and sulfidation under elevated temperatures. Its distinctive combination of toughness and flexibility allows it to withstand severe thermal and chemical conditions, making it ideal for applications demanding lasting durability in highly corrosive settings.
| Specifications | ASTM B564, ASME SB564 |
|---|---|
| Standard | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |

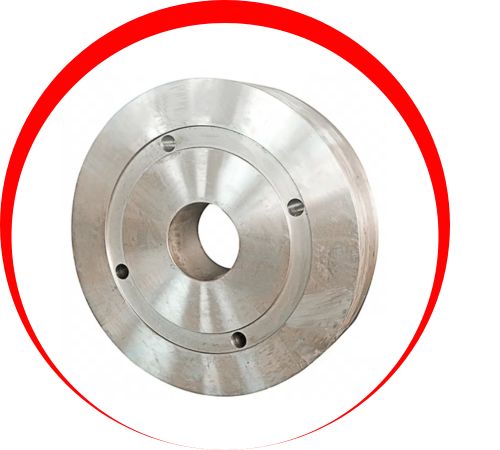

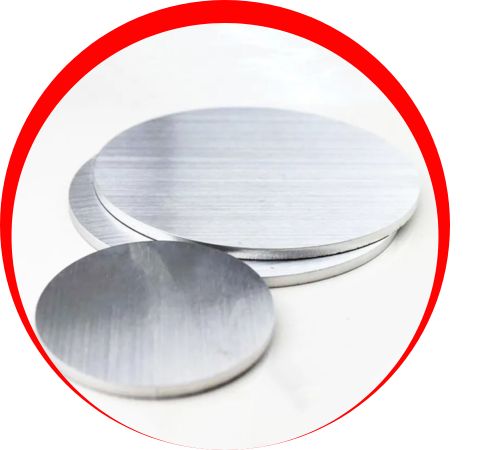

| Discs and hubs | up to 50″ diameter and 20,000 lbs |

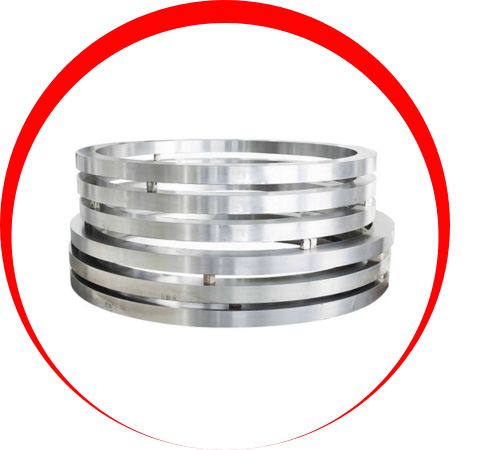

| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |

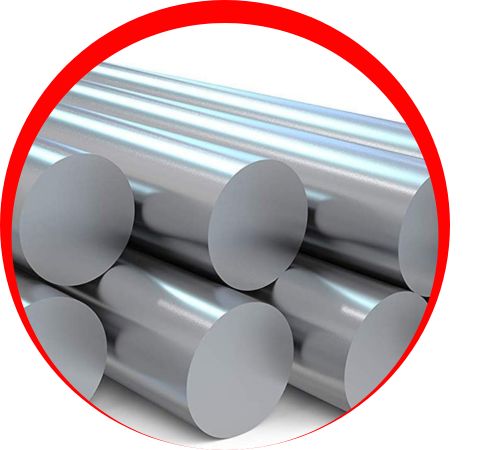

| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |
| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy 825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | |
| Incoloy 825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
At Al Vishwas Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Incoloy 825 Forgings in Dubai, UAE, delivering advanced solutions for every one of your piping requirements. Our modern manufacturing facilities are strategically situated in the UAE, enabling us to keep an extensive stock of more than 16,000 tons of top-quality materials ready and available. We are committed to supplying outstanding products and services, guaranteeing dependability and excellence for our worldwide customers.
Reach out to us for a fast quote on your requirement.
Incoloy 825 Forgings are widely employed across industries demanding exceptional corrosion resistance and strength. They see frequent application in chemical processing equipment, such as heat exchangers, pressure vessels, and reactors, where they are often exposed to aggressive acids and elevated temperatures. Moreover, their resistance to pitting and stress corrosion cracking makes them well-suited for marine environments, seawater handling systems, and offshore oil and gas components. Further uses span power generation, pollution control, and aerospace equipment. Thanks to their impressive blend of properties, Incoloy 825 Forgings serve as a preferred option for challenging conditions.
