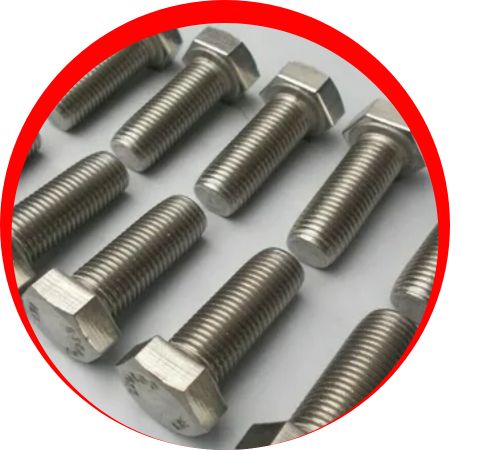

Home > Super Duplex Steel > Super Duplex Steel Stud Bolts S32750
Al Vishwas Nickel Alloys stands as a top manufacturer and supplier of Super Duplex Steel Stud Bolts S32750 in Dubai, UAE. Celebrated for their outstanding strength and resistance to corrosion, our S32750 stud bolts are engineered to satisfy the rigorous requirements of numerous industries, such as oil and gas, chemical processing, and marine applications. Through our dedication to quality and precision, we guarantee that every stud bolt provides superior performance in demanding environments, delivering dependable and durable fastening solutions. As a trusted supplier, Al Vishwas Nickel Alloys is committed to supplying high-quality products that conform to international standards, ensuring that our clients obtain best-in-class solutions for their critical applications.
| Specification | ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
| Standard | DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard Monel Monel® Alloy 400 Stud nuts length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 Monel Alloy 400 Hex nuts |
| Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Length | 3 mm to 200 mm | Custom Sizes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Test Certificate | As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Packing | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Cadmium Coating Hot Dipped Galvanizing Coating Ptfe Coated Nickel Alloy 200 Fasteners Phosphate Coating Teflon Coating Xylon Coating Zinc Coating |
| Grade | C | N | P | Si | Mn | Mo | Fe | Cr | S | Ni |
| Super Duplex Steel Stud Bolts S32750 | 0.030 max | 0.24 – 0.32 | 0.035 max | 0.80 max | 1.20 ma | 3.0 – 5.0 | – | 24.0 – 26.0 | 0.020 max | 6.00 – 8.00 |
| Grade | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| Super Duplex Steel Stud Bolts S32750 | 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
At Al Vishwas Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Super Duplex Steel Stud Bolts S32750 in Dubai, UAE, delivering advanced solutions for every piping requirement you have. Our modern manufacturing facilities are strategically situated in the UAE, enabling us to keep an extensive stock of more than 16,000 tons of high-quality materials ready and available. We are committed to supplying top-tier products and services, guaranteeing dependability and excellence for our worldwide customers.
Reach out to us for a fast quote tailored to your requirement.
Super Duplex Steel Stud Bolts S32750 find broad use in challenging applications calling for both high strength and corrosion resistance. They play a vital role in the oil and gas sector for offshore platforms, pipelines, and subsea equipment. Within chemical processing facilities, they deliver dependable fastening in corrosive settings. Beyond that, they serve marine applications, including shipbuilding and desalination plants, where withstanding seawater and chloride stress corrosion is essential. These bolts are likewise put to use across the power generation and petrochemical industries.
