Al Vishwas Nickel Alloys, based in Dubai, UAE, distinguishes itself as a leading manufacturer and supplier of premium Copper Nickel 70/30 Pipes, engineered to deliver outstanding performance in demanding marine and industrial environments. Known for precise engineering and strict quality control, the company manufactures pipes that shine in corrosion resistance, durability, and dependability. By employing state-of-the-art manufacturing methods, Al Vishwas guarantees that each Copper Nickel 70/30 Pipe complies with international standards and can withstand severe operating conditions. Their commitment to customer satisfaction, timely delivery, and top-grade materials has cemented their trusted standing both in UAE and across the world.
Copper Nickel 70/30 Pipes consist of roughly 70% copper and 30% nickel, together with minor quantities of iron and manganese that enhance their strength, corrosion resistance, and overall stability. These pipes offer remarkable mechanical properties, such as dependable tensile strength, sturdy yield strength, and excellent ductility, enabling them to work effectively under high pressure and fluctuating temperatures. They resist seawater corrosion, erosion, stress corrosion cracking, and biofouling, which makes them well-suited for long-term use in tough environments. The alloy’s durability and thermal stability ensure reliable performance in rigorous industrial and marine applications.
| ASTM Specification | ASTM B466/ ASME SB466, ASTM B467/ ASME SB467, ASTM B608 |
|---|---|
| Standard | GB, DTD, ASME, AISI, ASTM, TOCT, JIS, NF, SAE, DIN, AMS, DS, EN |
| Size of Seamless Pipe | Wall thickness.: 0.05- 20 milimeter, 4 – 219 milimeter |
| Size of Welded Pipe | 5.0 to 1219.02 milimeter |
| size of EFW Pipe | 5.0 to 1219.02 milimeter |
| Seamless Tube Size | 3.35 milimeter To 101.6 milimeter OD |
| Welded Tube Size | 6.35 milimeter To 152 milimeter OD |
| Bwg & Swg | 18 Swg., 14 20 Swg., Swg. Swg., 12 16 Swg., 10 Swg. |
| Tubing wall thickness | 0.020″ –0.220″, (custom wall thicknesses available) |
| Pipe Schedule | SCH20, XS, STD, XXS, SCH60, SCH140, SCH80, SCH80, SCH5, SCH40S, SCH40, SCH120, SCH10S, SCH10, SCH30, SCH160 |
| Length | Standard & Cut length , Single Random, Double Random Pipe |

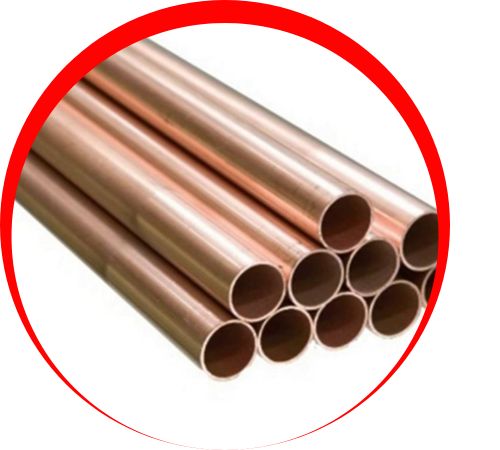

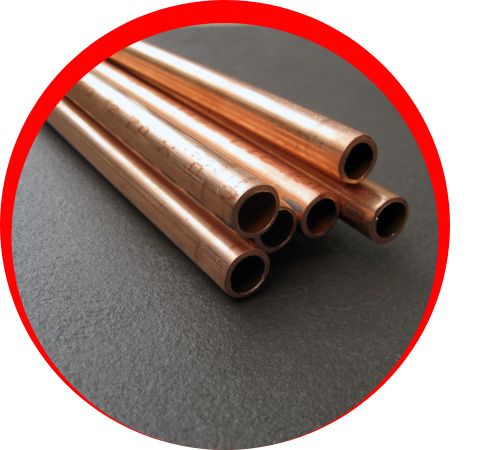

| Finish | AP (Annealed & Pickled), BA (Bright & Annealed), NO.1, 2B, Polished, MF, HL, NO.4, Mirror finish, BA, 8K etc |
| End | Plain End, Beveled End, Treaded Pipe, Screwed ends |

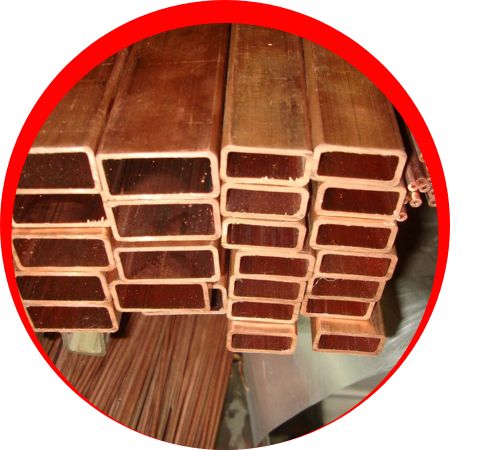

| Form | Hydraulic, Rectangular, Coiled, Square, Hollow, Round, Straight Pipes/tubes, “U” Shape, Pan Cake Coils, Boiler, LSAWetc. |
| Application | Dairy Pipe, Oil Pipe/tube, Gas Pipe/tube, Fluid Pipe/tube, Boiler Tube, Heat exchanger Tube |
| Type | Seamless /ERW/ EFW / Welded / Fabricated /CDW /DOM/CEW Copper Nickel 70/30 Pipe |
| Cu | Pb | Mn | Fe | Zn | Ni | |
|---|---|---|---|---|---|---|
| MIN | 65.000 | – | – | 0.400 | – | 29.000 |
| MAX | 70.000 | 0.500 | 1.000 | 1.000 | 1.000 | 33.000 |
| Yield Strength 0.2% Proof (MPa) |
Yield Strength 0.2% Proof (MPa) |
Tensile strength (MPa) |
Elongation (% in 50mm) |
Hardness (HRB) |
|---|---|---|---|---|
| MIN | 88 | 372 | 45.00 | |
| MAX | 483 | 517 | 51 |
| Density | kg/dm³ | 8.95 |
|---|---|---|
| Melting Range | °C | 1170-1240 |
| Specific Heat | J/kg °K | 377 |
| Thermal Conductivity | W/m°K | 29 |
| Coeff. of Linear Expansion 10-300°C” | 10-6/°K | 16 |
| Electrical Resistivity | microhm. cm | 34 |
| Modulus of Elasticity | GPa | 152 |
| Modulus of Rigidity | GPa | 56 |
At Al Vishwas Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Copper Nickel 70/30 Pipes in Dubai, UAE, delivering advanced solutions for every one of your piping requirements. Our modern manufacturing facilities are strategically situated in the UAE, enabling us to keep an extensive stock of more than 16,000 tons of top-quality materials on hand and ready to ship. We are committed to supplying outstanding products and services, guaranteeing dependability and excellence for our clients around the world.
Reach out to us for a fast quote tailored to your requirement.
Copper Nickel 70/30 Pipes are widely applied across industries requiring superior seawater corrosion resistance and long-lasting mechanical strength. They are commonly used in shipbuilding for seawater cooling systems, ballast systems, condensers, and heat exchangers. Offshore oil and gas platforms depend on these pipes for firewater systems, brine management, and high-salinity piping networks.
