Home > Copper Nickel > Copper Nickel 90/10 Pipes
Al Vishwas Nickel Alloys, a top manufacturer and supplier located in Dubai, UAE, focuses on delivering high-quality Copper Nickel 90/10 pipes. Renowned for their outstanding corrosion resistance, particularly in seawater conditions, these pipes consist of 90% copper and 10% nickel, which makes them well-suited for marine uses, power generation, and desalination facilities. Al Vishwas Nickel Alloys guarantees that every pipe complies with strict industry standards, offering dependable and long-lasting solutions for challenging projects worldwide.
Copper Nickel 90/10 Pipes consist of 90% copper and 10% nickel, offering resistance to corrosion, particularly in seawater. They feature high tensile strength, solid thermal conductivity and outstanding resistance to biofouling. These pipelines preserve their mechanical integrity even in demanding marine settings, which makes them well suited for marine and offshore uses. Strong resistance to stress corrosion cracking and erosion delivers long-lasting performance. The alloy’s easy fabrication and welding further add to its versatility and dependability across a wide range of industrial applications.
Specification: ASTM B466, B467, B111 / ASME SB466, SB467, SB111
Standard: ASTM, ASME and API
Size: 1/2″ TO 6′ IN OD & NB IN Various SWG & SCH
Outer Diameter: 4.00 to 22.00 mm
Wall Thickness: Between 0.15mm and 1.50 mm

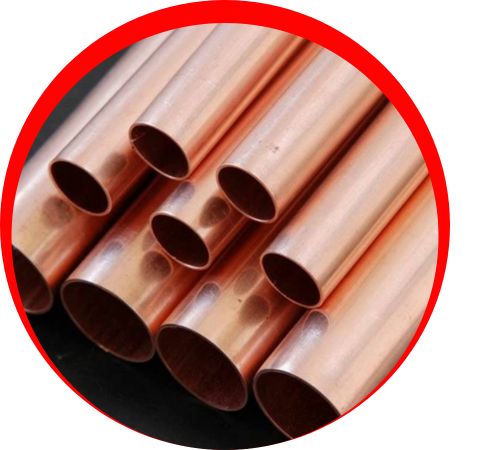

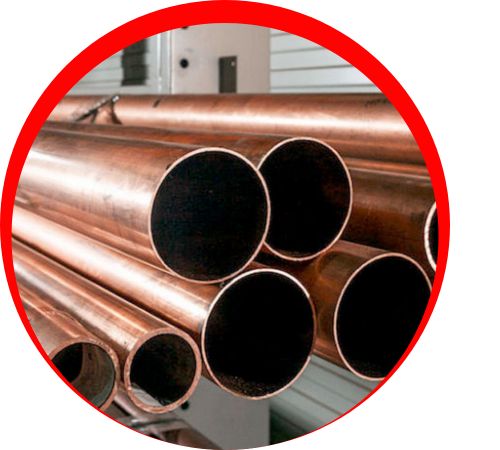

Type: Seamless / ERW / Welded / Fabricated Pipes

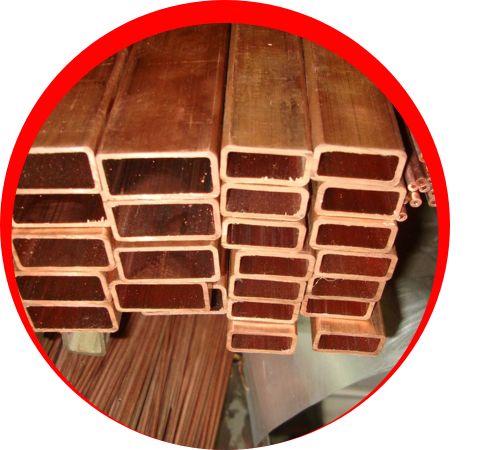

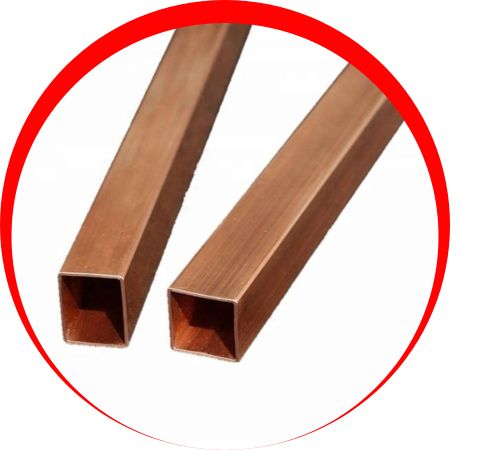

Form: Round, Square, Rectangular, Oval, Hydraulic Etc
Length: Single Random, Double Random & Required Length
End: Plain End, Beveled End, Treaded
Schedule: SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Inspection, Test Reports: Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non-Destructive Test Reports
Packing: Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Specials: Sizes and Specifications other than above can be manufactured on request
| Cu | Fe | Pb | Mn | Ni | Zn | |
| Min/Max | Rem | 1.0 – 1.8 | 0.05 | 1 | 9.0 – 11.0 | 1 |
| Nominals | 88.6000 | 1.4000 | – | – | 10.0000 | – |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength, ultimate | 303-414 MPa | 43900-60000 psi |
| Tensile strength, yield (depending on temper) | 110-393 MPa | 16000-57000 psi |
| Elongation at break (in 254 mm) | 42.00% | 42.00% |
| Machinability (UNS C36000 (free-cutting brass) = 100%) | 20% | 20% |
| Shear modulus | 52.0 GPa | 7540 ksi |
| Poisson’s ratio | 0.34 | 0.34 |
| Elastic modulus | 140 GPa | 20300 ksi |
| Properties | Metric | Imperial |
|---|---|---|
| Density | 8.94 g/cm3 | 0.323 lb/in3 |
At Al Vishwas Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Copper Nickel 90/10 Pipes in Dubai, UAE, delivering advanced solutions for every one of your piping requirements. Our modern production facilities are strategically situated in the UAE, enabling us to keep an extensive inventory of more than 16,000 tons of top-quality materials ready and available in stock. We are committed to providing outstanding products and services, guaranteeing dependability and excellence for our worldwide customers.
Reach out to us for a fast quote tailored to your requirement.
Copper Nickel 90/10 pipes are extensively utilized across marine and offshore sectors owing to their resistance to sea water corrosion and outstanding bio-odor. It is frequently applied in shipbuilding for marine coolants, ballast lines and condensers. Furthermore, these pipes serve desalination plants, power plants, and chemical plants where corrosion resistance and durability are demanded The capacity to endure internal environmental conditions den edge renders it ideal for applications that call for dependable and long-lasting performance in harsh conditions.
